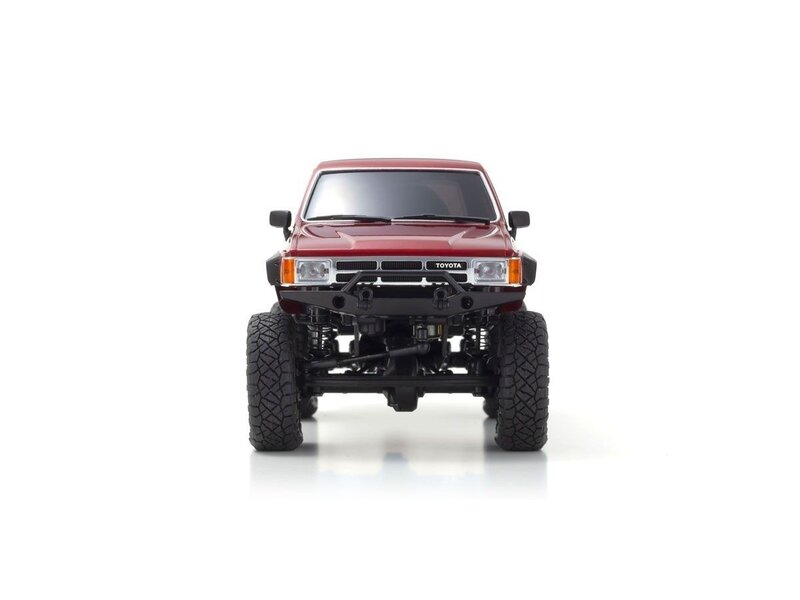

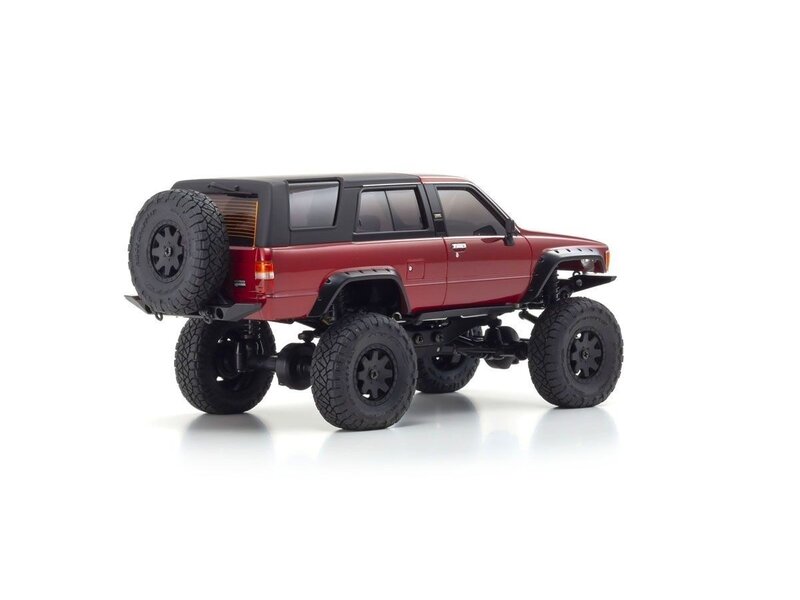

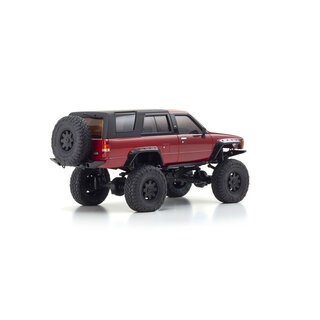

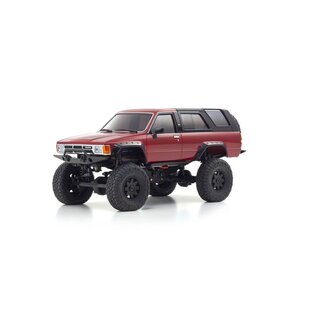

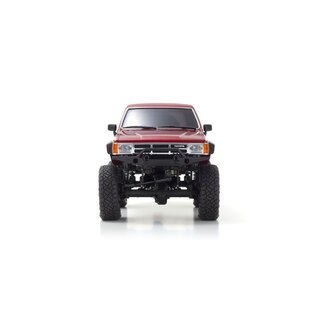

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

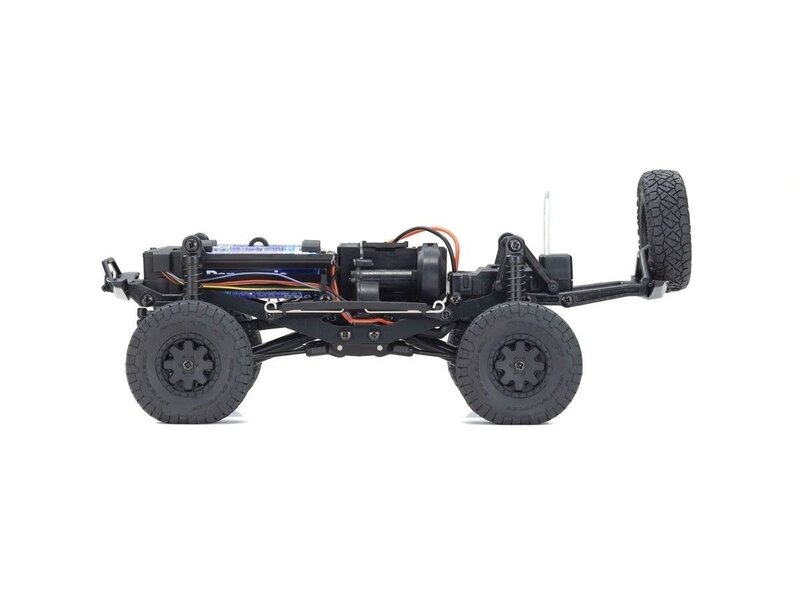

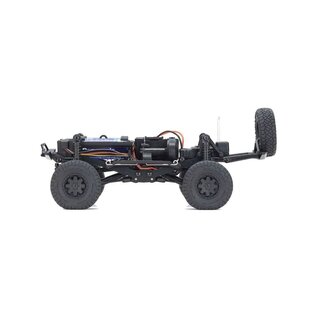

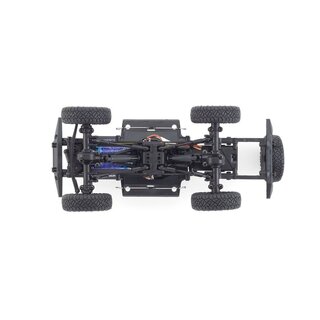

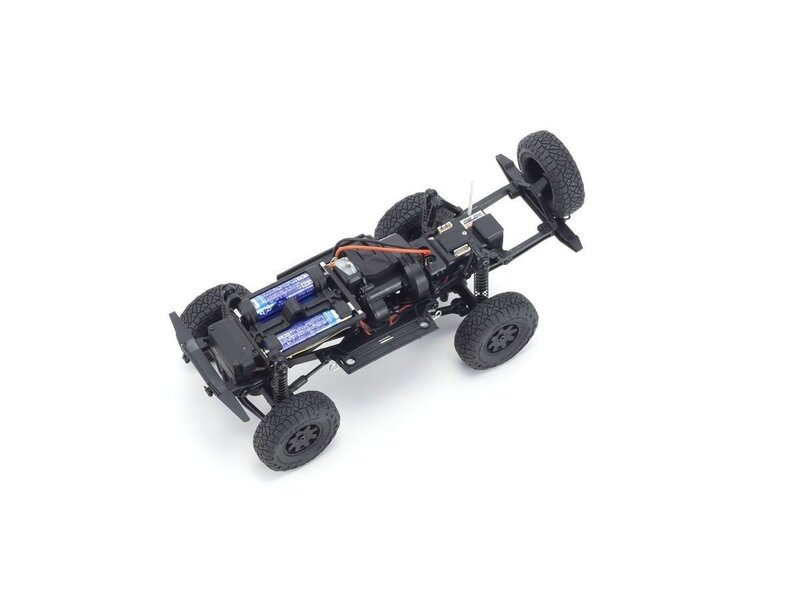

In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4x4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.
Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package
Technical datas
¦Length 200.5mm
¦Width 87mm
¦Height 86.0mm
¦Chassis Type MX-01
¦Wheel Base 110mm
¦Tread F/R:72.7mm
¦Weight 223g (excl. battery)
¦Motor/Engine 130 Class
¦Gear Ratio 55.44:1/30.80:1/46.20:1
27.72:1/39.60:1/34.65:1
¦Front Tire Diameter Φ42.0mm
¦Rear Tire Diameter Φ42.0mm
¦Front Tire Width 14.3mm
¦Rear Tire Width 14.3mm
¦Battery 4 x AAA alkaline
¦Transmitter Syncro KT-531P
¦Speed Approx. 3.3km/h?6.6km/h (Pinion gears 10T? 20T)
¦Running Time Approx. 60 mins
Kit contents

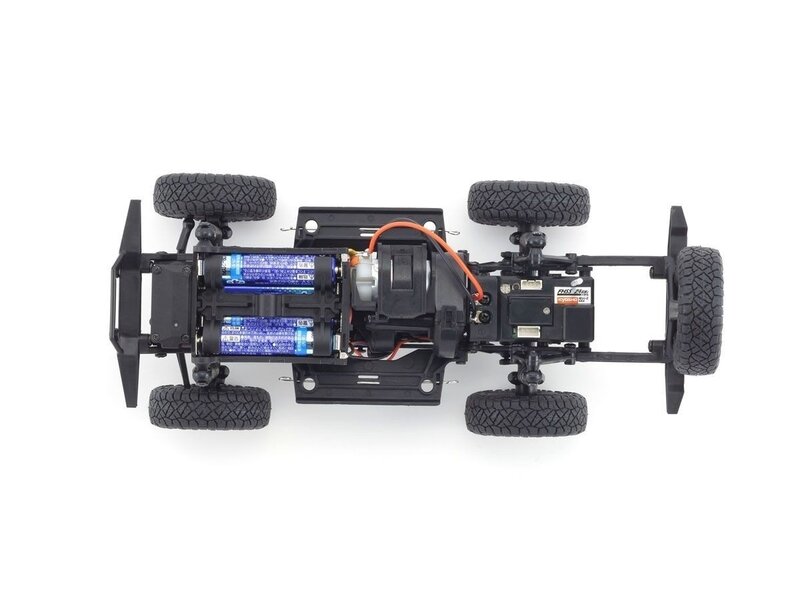

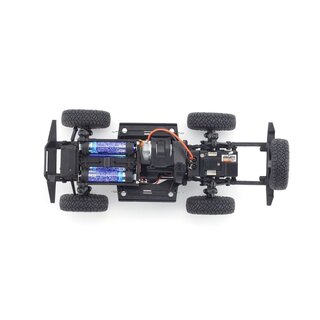

?Complete chassis with built-in electronics.

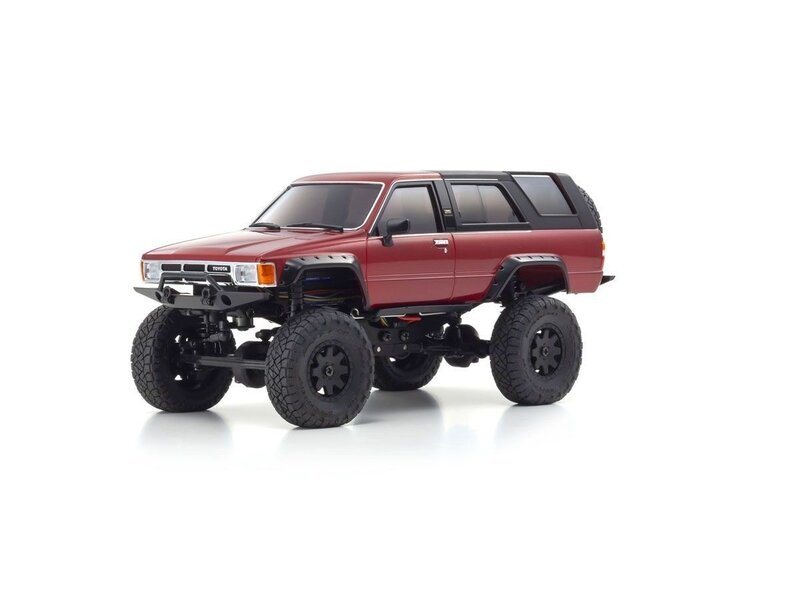

?Factory-painted body complete with many fine details
?KT-531P 2.4GHz transmitter
?Pinion gear set(10T?12T?14T?16T?18T?20T)
?3 types of pinion gear spacers
Required for operation
?4 x AAA batteries for the transmitter
?4 x AAA batteries for chassis (Alkaline or NiMH)
