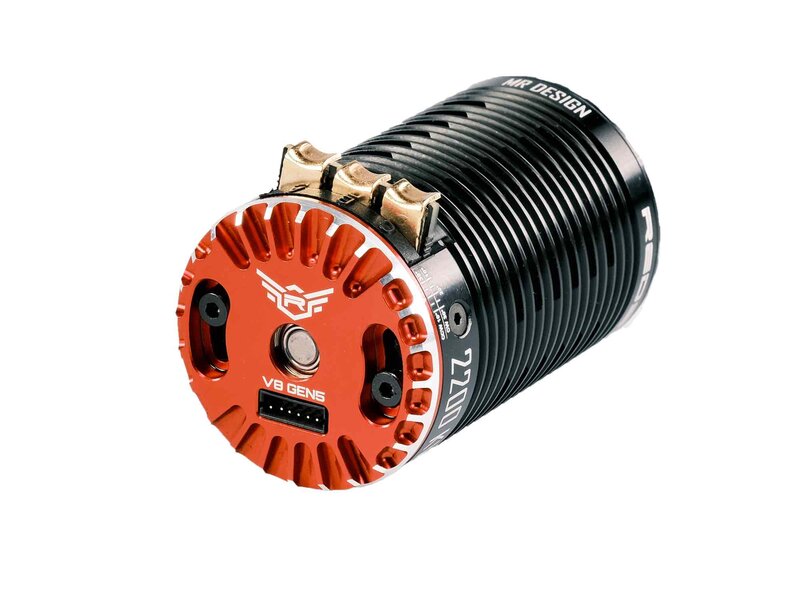

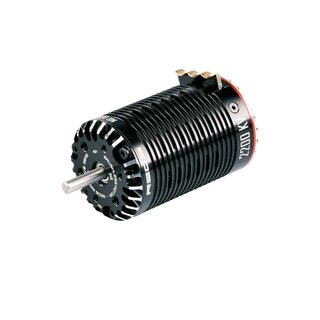

REDS 1/8 Brushless Motor 1900kV V8 4Pol Sensored Gen5

REDS 1/8 Brushless Motor 1900kV V8 4Pol Sensored Gen5
GEN5 Motor efficiency has been heavily improved, effectively reducing temperature increase. Our main objective was to optimize motor structure in order to reduce motor temperature of about 20% and we achieved it. Thanks to new design and materials the REDS GEN5 Brushless motors are simply more reliable and efficient compared to the older versions.
REDS 1/8th GEN5 motors have been designed to provide exceptional power, smoothness and driveability in combination with high efficiency and really low temperature operation.
The REDS GEN5 engine features adjustable timing of ±10°, allowing for better engine tuning and the attainment of desired performance levels.
Reds Racing V8 GEN5 line features an extremely high level of accuracy and quality. Every motor is hand-tested and hand-inspected to achieve the best product standards on the market.
Reds V8 GEN5 features a dual sensor design to make it suitable for every type of car layout. Capable of both sensored and sensorless operations, the new line is ideal for 1/8 buggy, truggy, GT and on-road categories and is available in four KV options of 1900, 2200, 2400 and 2800.
Technische Daten
KV [RPM/V] 1900
Category 1/8 Buggy
EFRA Rules Yes
Motor Diameter [mm] 42
Motor Lenght [mm] 69
Shaft Diameter [mm] 5
Weight [kg] 330
